Non-Linear Data


Topics of this chapter are: Curve Fitting, Curvilinearity, Normal Curve, and Skewness




Divorce rates in Australia in years from 1947 to 1977. In 1974 divorce became legal. The above lines seem to capture the relationship of divorce rates over time and also the change in the law in 1974 when divorce became legal. There was a clear spike when the law changed and a decline after the "pent up" divorces were accomplished. The lines as drawn seem to pass very close to all of the points.



The curve in the second graph presents a different interpretation. It indicates that the divorce rate has been on the rise since the middle sixties and possibly the law caught up with the practice.

Further, the line may pass about as close to the data points as the above graph. The lower line is also more simple. It could be generated with three functions (starting point, slope and accelerating) while it may take as many as six functions to generate the top graph. The bottom graph is more parsimonious.


Curvilinearity


A positively accelerating curve


As indicated in the graphs above trends may be linear or non-linear. The data in Table I is hypothetical trend for 10% interest on $1000.00 for 30 years. Figure 1 shows the 10% Interest at 5 year intervals. Note the non-linear trend. When the numbers are squared the trend becomes more linear but it still remains non-linear in Figure 2. When the natural log is used to transform the data it becomes linear. This difference can be tested by using multiple regression and correcting skewed data.



Figure 1. 10% Interest.


The 10% Interest produces a positive accelerating curve as seen in Figure 1. Notice the each year the gap widens between the amount of change.



The square root of the 10% Interest reduces the amount of acceleration of the curve but it still exists. There continues to be a positive accelerating curve.




Notice in both Figures 1 & 2 that the trend is a positively accelerating even though it is less so in Figure 2 where the transformation is accomplished by the square root method. However, in Figure 3 the trend is a straight line (linear). In Figure 3 the natural log is computed and the result is a straight line.

Things that grow throughout their life will follow that same non-linear pattern as inflation. For example many organisms like trees and whales do, and their weight will increase in a non-linear fashion. Many other living things will increase in a non-linear fashion until maturity. Many psychological phenomenon will follow the same pattern. The year from 1 year old to 2 years old seems much longer than the year 50 to 51 years old. A day spent in a psychiatric hospital has a much longer phenomonologically for a person who spends a week in a psychiatric hospital than for a person who spends a year in a psychiatric hospital. As noted above curvilinearity can be corrected by computing a natural log.

Curvilinearity and Correlation


The data presented above also demonstrates how curvilinearity can be assessed in a correlation or regression problem. The table below contains the correlations of YEAR with INFLATION, INFLATION SQUARED, and the NATURAL LOG OF INFLATION. It shows that when YEAR is correlated with inflation it is .938 but when the Natural Log is computed the relationship becomes 1.00. This indicates that there is a curvilinear relationship between INFLATION and YEAR. Consequently, such a relationship can be tested (as was done here) by first assessing a relationship between two variables and then computing the natural log on the variable that is suspected of being curvilinear and testing that new variable. If the correlation improves as in the example one can conclude that there is a curvilinear relationship. (It must be determined that there is a significant difference between the two correlations.) The curvilinear relationship is exemplified in the scattergrams below.





Curvilinearity and Skewness


Skewness of frequency data presents the problem as curvilinearity data above and computing the Natural Log solves the problem in the same manner. In this next example the variable SHOULD and CONFUSE are skewed. The reason for the skewed data is that most feel that they do what they should and most people don't feel confused. Consequently, most of the responses will be toward the end of the scale.






Both of the variables are skewed (skewness greater than one). Further, the SHOULD variable has another problem in that it is negatively skewed. The computing the natural log function will correct skewness only when it is positive. In order to correct the negative skewness the item must first be reversed. The log function cannot be computed on 0 (zero) and 1 (one) must be added to all numbers. The syntax file above performs all of the necessary functions.

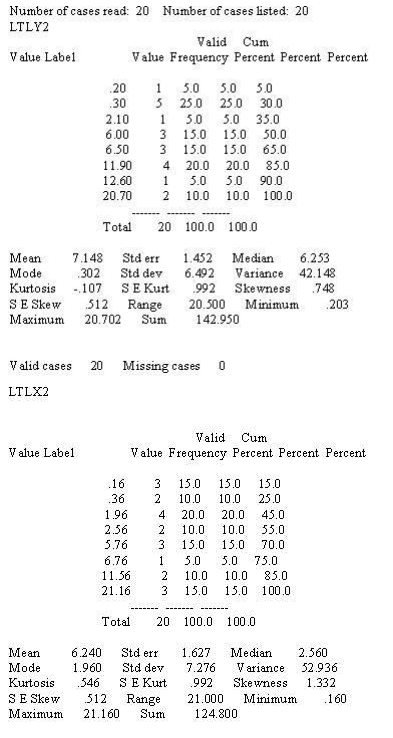

Notice that skewness has been corrected for both variables. Although it is not intuitive when comparing the bar charts. Consequently, the overlay chart has been drawn below to show the correction. In the chart below both the original and natural log of the variable CONFUSE is plotted to show how the skewed variable has become normal.








These are refered to as Standard Scores - they have a mean of 0 and a standard deviation of 1. T- scores have a mean of 50 or 100 and a standard deviation of 5 or 10. The WAIS has a mena of 100 and a standard deviation of 15. The following jobstream computes 3 different standard scores (1) the first has a mean of 50 and a standard deviation of 10, (2) the second has a mean of 100 and a standard deviation of 15, and the final (3) has a mean of 37 (possibly the average age that people become depressed -- nobody says this has to make sense) and a standard deviation of

8.3 (some other possibility). A little weird but you can do anything you want as long as it does not have to make sense.
